Cls 10 slusn Chp 12 Electricity

 Class 10 Science

 Chapter 12 Electricity

 Solutions

Page Number: 200

1. What does an electric circuit mean ?

Ans:

A continuous and closed path of an electric current is called an electric circuit.

2. Define the unit of current.

Ans:

The unit of current is ampere. Ampere is defined by the flow of one coulomb of charge per second.  1 A = I C s-1

3. Calculate the number of electrons constituting one coulomb of charge.

Ans:

Charge on one electron, e = 1.6 x 10^-19 C

Total charge, Q = 1 C

Number of electrons, n = Q/e = 1C/1.6x10^−19 = 6.25 x 10^18

Page Number: 202

1. Name a device that helps to maintain a potential difference across a conductor.

Ans:

A battery.

2. What is meant by saying that the potential difference between two points is 1 V?

Ans:

When 1 J of work is done to move a charge of 1 C from one point to another, it is said that the potential difference between two points is 1 V.

3. How much energy is given to each coulomb of charge passing through a 6 V battery ?

Ans:

Energy given by battery = charge x potential difference

or W = QV = 1C X 6V = 6J.

Page Number: 209

1. On what factors does the resistance of a conductor depend?

Ans:

The resistance of the conductor depends on the following factors:

a. Temperature of the conductor

b. Cross-sectional area of the conductor

c. Length of the conductor

d. Nature of the material of the conductor

2. Will current flow more easily through a thick wire or a thin wire of the same material, when connected to the same source? Why?

Ans:

The current will flow more easily through thick wire. It is because the resistance of aconductor is inversely proportional to its area of cross - section.

3. Let the resistance of an electrical component remains constant while the potential difference across the two ends of the component decreases to half of its former value. What change will occur in the current through it ?

Ans:

When potential difference is halved, the current through the component also decreases to half of its initial value. This is according to ohm’s law i.e., V ∝ I.

4. Why are coils of electric toasters and electric irons are made of an-alloy rather than a pure metal ?

Ans:

> The melting point of an alloy is much higher than a pure metal

> The resistivity of an alloy is higher than the pure metal.

5. Use the data in Table 12.2  to answer the following :

(i) Which among iron and mercury is a better conductor ?

(ii) Which material is the best conductor ?

Ans:

(i) Iron

(ii) Silver

Page Number: 213

1. Draw a schematic diagram of a circuit consisting of a battery of three cells of 2 V each, a 5Ω resistor, an 8 Ω resistor, and a 12 Ω resistor, and a plug key, all connected in series.

Ans:

2. Redraw the circuit of Questions 1, putting in an ammeter to measure the current through the resistors and a voltmeter to measure the potential difference across the 12 Ω resistor. What would be the readings in the ammeter and the voltmeter ?

Ans:

Total voltage, V = 6V

Total resistance, R = 5Ω + 8Ω + 12Ω = 25Ω

Page Number: 216

1. Judge the equivalent resistance when the following are connected in parallel :

(i) 1 Ω and 106 Ω,

(if) 1 Ω and 103 Ω and 106 Ω.

Ans:

the equivalent resistance is smaller than the smallest individual resistance.

(i) Equivalent resistance < 1 Ω.

(ii) Equivalent resistance < 1 Ω.

2. An electric lamp of 100 Ω, a toaster of resistance 50 Ω, and a water filter of resistance 500 Ω are connected in parallel to a 220 V source. What is the resistance of an electric iron connected to the same source that takes as much current as all three appliances, and what is the current through it ?

Ans:

Resistance of electric lamp, R1 = 100 Ω

Resistance of toaster, R2 = 50 Ω

Resistance of water filter, R3 = 500 Ω

Equivalent resistance Rp of the three appliances connected in parallel, is

Resistance of electric iron = Equivalent resistance of the three appliances connected in parallel = 31.25 Ω

Applied voltage, V = 220 V

Current, I = V/R = 220V/31.25Ω = 7.04A

Current flowing through electric iron is 7.04A

3. What are the advantages of connecting electrical devices in parallel with the battery instead of connecting them in series ?

Ans:

> In parallel circuits, if an electrical appliance stops working  then all other appliances keep working normally.

> In parallel circuits, each electrical appliance has its own switch.

> In parallel circuits, each electrical appliance gets the same voltage (220 V).

> In the parallel connection of electrical appliances, the overall resistance of the household circuit is reduced due to which the current from the power supply is high.

4. How can three resistors of resistances 2Ω, 3 Ω, and 6Ω be connected to give a total resistance of (i) 4 Ω, (ii) 1 Ω ?

Ans:

(i) We can get a total resistance of 4Ω by connecting the 2Ω resistance in series with the parallel combination of 3Ω and 6Ω.

(ii) We can obtain a total resistance of 1Ω by connecting resistors of 2 Ω, 3 Ω and 6 Ω in parallel.

5. What is (i) the highest, (ii) the lowest total resistance that can be secured by combinations of four coils of resistance 4 Ω, 8 Ω, 12 Ω, 24 Ω?

Ans:

(i) Highest resistance can be obtained by connecting the four coils in series.

Then, R = 4Ω + 8Ω + 12Ω + 24Ω = 48Ω

(ii) Lowest resistance can be obtained by connecting the four coils in parallel.

Page Number: 218

1. Why does the cord of an electric heater not glow while the heating element does?

Ans:

> The heating element of an electric heater is made of an alloy which has a high resistance. When the current flows through the heating element, the heating element becomes too hot and glows red.

> The cord is usually made of copper or aluminum which has low resistance. Hence the cord doesn’t glow.

2. Compute the heat generated while transferring 96000 coulomb of charge in one hour through a potential difference of 50 V.

Ans:

Here, Q = 96,000C, t =1 hour = 1 x 60 x 60 sec = 3,600 s, V = 50 V

Heat generated, H = VQ = 50Vx 96,000C = 48,00,000 J = 4.8 x 106 J

3. An electric iron of resistance 20Ω takes a current of 5 A. Calculate the heat developed in 30 s.

Ans:

Here, R = 20 Ω, i = 5 A, t = 3s

Heat developed, H = I^2 R t = 25 x 20 x 30 = 15,000 J = 1.5 x 10^4 J

Page Number: 220

1. What determines the rate at which energy is delivered by a current ?

Ans:

the rate at which energy is delivered by a current is the power of the appliance.

2. An electric motor takes 5 A from a 220 V line. Determine the power of the motor and the energy consumed in 2 h.

Ans:

Here, I = 5 A, V = 220 V, t = 2h = 7,200 s

Power, P = V I = 220 x 5 = 1100 W

Energy consumed = P x t = 100 W x 7200 s = 7,20,000 J = 7.2 x 10^5 J

 Exercises Questions

1. A piece of wire of resistance R is cut into five equal parts. These parts are then connected in parallel. If the equivalent resistance of this combination is R′, then the ratio R/R′ is _____.

(a) 1/25   (b) 1/5   c) 5  (d) 25

Ans: d) 25

2. Which of the following does not represent electrical power in a circuit?

(a) I^2R    (b) IR^2    ( c) VI     (d) V^2/R

Ans: b) IR^2

3. An electric bulb is rated 220 V and 100 W. When it is operated on 110 V, the power consumed will be :

(a) 100 W   (b) 75 W   ( c) 50 W    (d) 25 W

Ans:  (d) 25 W

4. Two conducting wires of the same material and of equal lengths and equal diameters are first connected in series and then parallel in a circuit across the same potential difference. The ratio of heat produced in series and parallel combinations would be :

(a) 1 : 2     (b) 2 : 1      ( c) 1 : 4     (d) 4 : 1

Ans: ( c) 1 : 4

5. How is a voltmeter connected in the circuit to measure the potential difference between two points ?

Ans:

A voltmeter is connected in parallel to measure the potential difference between two points.

6. A copper wire has diameter 0.5 mm and resistivity of 1.6 x 10-8 Ω m. What will be the length of this wire to make its resistance 10 Ω ? How much does the resistance change if the diameter is doubled ?

Ans:

If a wire of diameter doubled to it is taken, then area of cross-section becomes four times.

New resistance = 10/2 = 2.5 Ω, Thus the new resistance will be 1/4 times.

Decrease in resistance = (10 – 2.5) Ω = 7.5 Ω

7. The values of current I flowing in a given resistor for the corresponding values of potential difference V across the resistor are given below :

Plot a graph between V and I and calculate the resistance of the resistor.

Ans:

The graph between V and I for the above data is given below.

The slope of the graph will give the value of resistance.

Let us consider two points P and Q on the graph.

and from P along Y-axis, which meet at point R.

Now, QR = 10.2V – 34V = 6.8V

And PR = 3 – 1 = 2 ampere

Thus, resistance, R = 3.4 Ω

8. When a 12 V battery is connected across an unknown resistor, there is a current of 2.5 mA in the circuit. Find the value of the resistance of the resistor

Ans:

The value of the resistor can be calculated using Ohm’s Law as follows:

9. A battery of 9 V is connected in series with resistors of 0.2 Ω, 0.3 Ω, 0.4 Ω, 0.5 Ω and 12 Ω, respectively. How much current would flow through the 12 Ω resistor?

Ans:

Total resistance, R = 0.2 Ω + 0.3 Ω + 0.4 Ω + 0.5 Ω + 12 Ω – 13.4 Ω

Potential difference, V = 9 V

Current through the series circuit, I = V/R = 12V/13.4Ω = 0.67 A

∵ There is no division of current in series. Therefore current through 12 Ω resistor = 0.67 A.

10. How many 176 Ω resistors (in parallel) are required to carry 5 A on a 220 V line?

Ans:

Suppose n resistors of 176Ω are connected in parallel.

Thus 4 resistors are needed to be connect.

11. Show how you would connect three resistors, each of resistance 6 Ω, so that the combination has a resistance of (i) 9 Ω, (ii) 4Ω

Ans:

Here, R1 = R2 = R3 = 6 Ω.

(i) When we connect R1 in series with the parallel combination of R2 and R3 as shown in Fig. (a).

The equivalent resistance is

(ii) When we connect a series combination of R1 and R2 in parallel with R3, as shown in Fig. (b), the equivalent resistance is

12. Several electric bulbs designed to be used on a 220 V electric supply line, are rated 10 W. How many lamps can be connected in parallel with each other across the two wires of 220 V line if the maximum allowable current is 5 A ?

Ans:

Here, current, I = 5 A, voltage, V = 220 V

∴ Maxium power, P = I x V = 5 x 220 = 1100W

Required no. of lamps

=Max.Power/Power of 1lamp

=1100/10=110

∴ 110 lamps can be connected in parallel.

13. A hot plate of an electric oven connected to a 220 V line has two resistance coils A and B, each of 24 Ω resistance, which may be used separately, in series, or in parallel. What are the currents in the three cases ?

Ans:

(i) When the two coils A and B are used separately. R = 24 Ω, V = 220 V

(ii) When the two coils are connected in series

(iii) When the two coils are connected in parallel.

14. Compare the power used in the 2 Ω resistor in each of the following circuits

(i) a 6 V battery in series with 1 Ω and 2 Ω resistors, and

(ii) a 4 V battery in parallel with 12 Ω and 2 Ω resistors.

Ans:

(i) The circuit diagram is shown in figure.

Total resistance, R = 1Ω + 2Ω = 3Ω

Potential difference, V = 6 V

Power used in 2Ω resistor = I^2R = (2)^2 x 2 = 8 W

(ii) The circuit diagram for this case is shown :

Power used in 2 resistor = v^2/R =4^2/2 = 8 W.

[∵ Current is different for different resistors in parallel combination.]

15. Two lamps, one rated 100 W at 220 V, and the other 60 W at 220 V, are connected in parallel to electric mains supply. What current is drawn from the line if the supply voltage is 220 V ?

Ans:

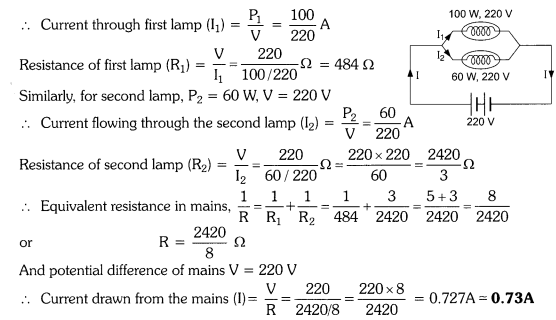

Power of first lamp (P1) = 100 W

Potential difference (V) = 220 V

16. Which uses more energy, a 250 W TV set in 1 hr, or a 1200 W toaster in 10 minutes ?

Ans:

Energy used by 250 W TV set in 1 hour = 250 W x 1 h = 250 Wh

Energy used by 1200 W toaster in 10 minutes = 1200 W x 10 min

= 1200 x 10/60 = 200 Wh 60

Thus, the TV set uses more energy than the toaster.

17. An electric heater of resistance 8 Ω draws 15 A from the service mains 2 hours. Calculate the rate at which heat is developed in the heater.

Ans:

Here, R = 8 Ω, 1 = 15 A, t = 2 h

The rate at which heat is developed in the heater is equal to the power.

Therefore, P = I^2 R = (15)^2 x 8 = 1800Js^-1

18. Explain the following:

(i) Why is tungsten used almost exclusively for filament of electric lamps ?

(ii) Why are the conductors of electric heating devices, such as bread-toasters and electric irons, made of an alloy rather than a pure metal ?

(in) Why is the series arrangement not used for domestic circuits ?

(iv) How does the resistance of a wire vary with its area of cross-section ?

(v) Why are copper and aluminium wires usually employed for electricity transmission

Ans:

(i) The resistivity and melting point of tungsten is very high. Due to this property, it doesn’t burn readily when heated.

(ii) because the resistivity of an alloy is much higher than that of pure metal and an alloy does not undergo oxidation (or burn) easily even at high temperature.

(iii) because in series circuit, if one electrical appliance stops working due to some defect, than all other appliances also stop working because the whole circuit is broken.

(iv)Resistance is inversely proportional to the area of cross section. When the area of cross section increases the resistance decreases and vice versa.

(v)because they have very low resistances. So, they do not become too hot on passing electric current.
